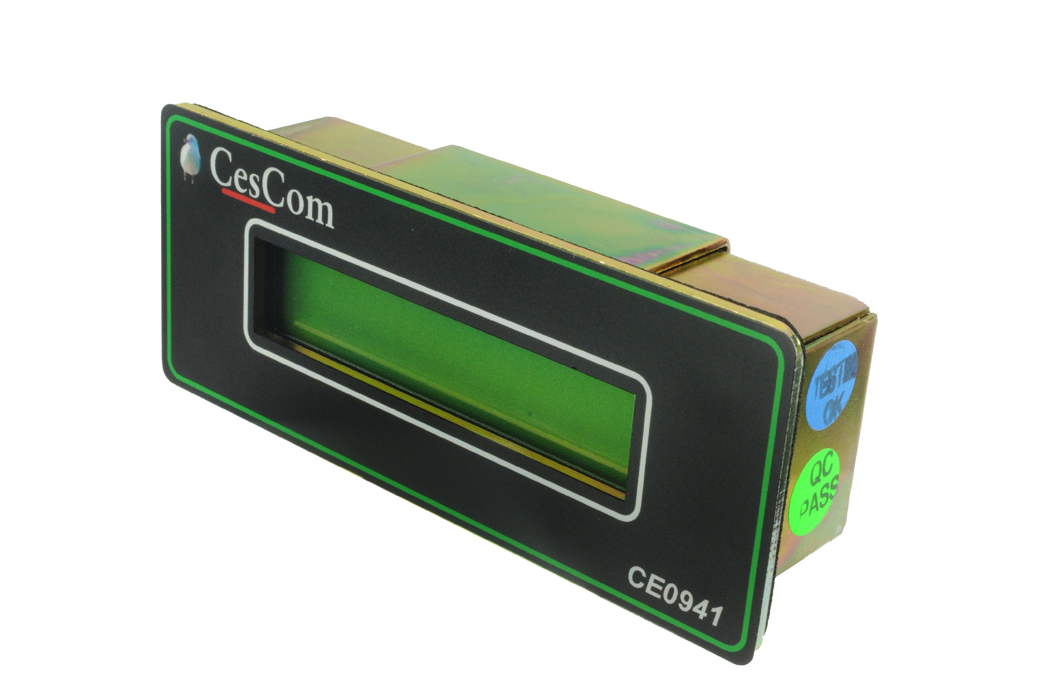

CE0941 INDUSTRIAL MESSAGE DISPLAY

A programmable message display for use with PLC contacts or MODBUS or just plain ASCII. Capable of displaying a message of two lines of 20 characters per line or dual 100 segment bargraphs. No practical limit to the different messages that can be selected using a single relay or transistor output from a PLC.

Alternatively the display can be directly addressed over RS-485 to display host specified messages or it can simply sniff RS-485 networks and extract current system messages transparently to the network. Equipped with RS232 and RS485 ports plus Hires VGA and TV outputs for enhanced displays are fitted as standard.

- RS232
- RS485
- Pulse mode input
- 20×2 backlit LCD
- P8X32A Multicore CPU
- VGA and TV out
- LV100 compatible modes
- MODBUS and ASCII protocols
- Switch-mode supply
- RS232 terminal menu setup

Download Product Data PDF

Add to wishlist

Category: Displays.
